Nucleon QD Double Girder Heavy Duty Overhead Crane

Nucleon QD double girder heavy duty overhead crane. the main girder includes girder box, platform, pantograph and trolley rail.

Main Parameter
  • Lifting weight:16~75t/3.2~20t
  • Lifting height:12~26m/15~28m
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
Nucleon QD double girder heavy duty overhead crane. the main girder includes girder box, platform, pantograph and trolley rail. The Main girder will be strictly fabricated and detected in our workshop according the design and national standard.

Crane trolley is assembled with motor, reducer, brake. trolley frame. drum, hook, pulley, rain cover and other parts. It includes lifting mechanism and cross traveling mechanism. This QD double girder overhead crane rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. High lifting capacity of this crane is designed with two hooks that means two independent sets of hoisting mechanism. The main hook is used to lift heavy objects while the auxilary used to lift light objects, the auxiliary can also be used for collaborative main hook tilting or tipping the material.

Whole crane before painting will be done the shot blasting, painting totally four layers including the one layer of priming paint, two layers of intermediate coat and one layer of finishing coat.

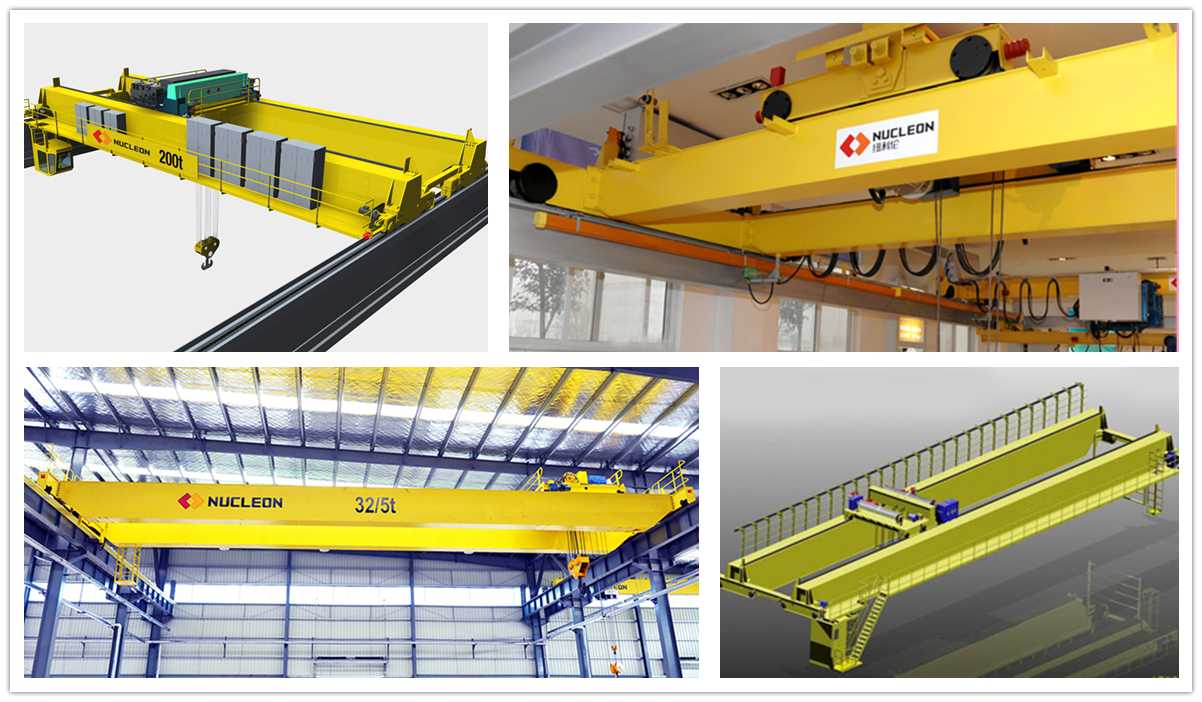

Nucleon QD Double Girder Heavy Duty Overhead Crane.jpg

Capacity

(t)

Lifting (m)

Speed (m/min)

Total

Power

(kw)

Recommend

Rail

(kg/m)

Main hook

Aux hook

Main hook

Aux

hook

trolley

crane

16/3.2

12

15

2.5~9

9

20~38

30~70

19.4~49.5

52.8

20/5

27.5~62.5

25/5

28.1~72.9

32/5

15

17

30~80

29.7~110

63.69

40/5

2~9

30~70

30.5~111.5

50/10

2~7

9

46.4~130

63/10

21

23

1.5~7

9

46.4~157

75/20

26

28

1.7~7

7

18~30

81~184

88.96

1. compact structure

2. convenient and safe operation

3. efficient and low noise

4. room saving

5. accurate lifting steady operation
