Nucleon BMHN Single and Double Girder Semi-Gantry Crane

Nucleon BMHN single and double girder semi gantry crane is based on gantry crane.

Main Parameter
  • span:10~20m
  • Lifting weight:2~10t
  • Lifting height:6m
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

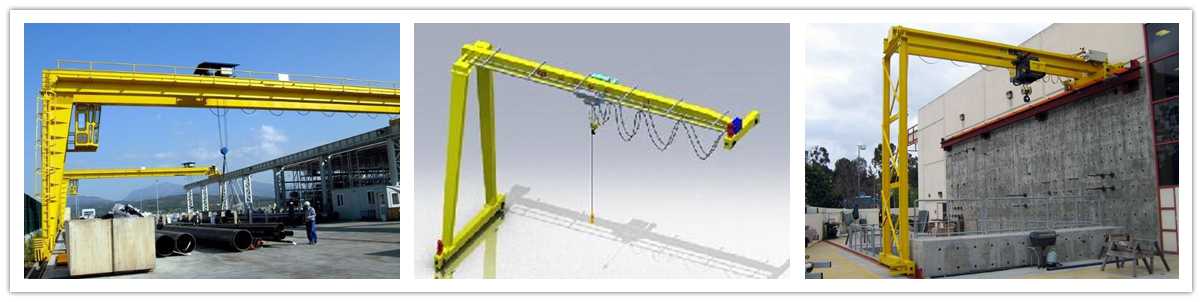

Nucleon BMHN single and double girder semi gantry crane is based on gantry crane. which consists of cane span structures, lifting and cross travelling mechanism, long travelling mechanism and electrical control system. Only one side of the crane holds landing leg travelling on the rails on ground. The other side with end carriage running on the wall of workshop. Compared with the normal gantry crane. it is a good choose to save the investment and space.

This type is widely used in open warehousee. material stocks area. cement plant, granite industry, port, the freight yard. windy areas and other outwork places to lifting and loading unloading goods.

Nucleon BMHN single and double girder semi gantry crane is widely used together with CD. MD and ND Model electric hoist. It is a track traveling small and medium-size crane. Its proper lifting weight is 1~32t, proper span is 5~20m. Its proper working temperature is -20℃-+40℃. We can also customize it according to customers' requirement.


Lifting Capacity

t

2

3

5

10

Span

m

10,12,16,20

10,12,16,20

10,12,16,20

10,12

16,20

Lifting Height

m

6

6

6



6

Traveling Mechanism

Travelling Speed

Ground

m/min

20

20

20

20

Cab

20,30

20,30

20,30

20,30

Reducer

LDAC1 LDA1

LDAC1 LDA1

LDAC1 LDA1

LDAC1 LDA1

LDH LDHC

Wheel Diameter

mm

270

270

270

270

400

Electric Hoist



Type No.



CD1,MD1



Lifting Speed

m/min

8 ; 0.8/8

8; 0.8/8

7;7/0.7

Travelling  Speed

m/min

20(30)

20(30)

20(30)

20(30)

Rail Recommended

P24

P24

P24,P38

P38

Power Source

3-Phase A.C.50Hz  380V

1. compact structure

2. convenient and safe operation

3. efficient and low noise

4. room saving

5. accurate lifting steady operation
