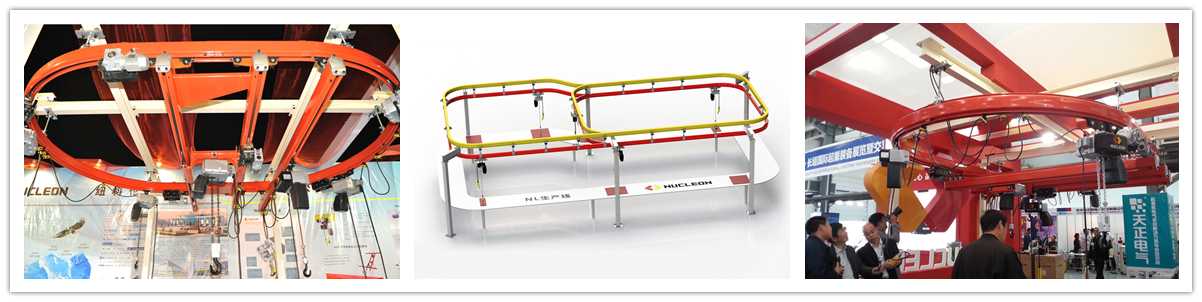

Nucleon KBK Light Duty Crane

The design and manufacture of NL chain hoist conforms to the FEM standard and DIN standard.

  • Nucleon KBK Light Duty Crane
Main Parameter
  • Lifting weight:0.25~3t
  • Lifting height:3~8m
  • Work class:M3~M6
Nucleon(Xinxiang)Crane Co.,Ltd,
E-mail：sale@nucleoncranes.cn
Tel：+86-373-3075268
  • ● Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • ● Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • ● Delivery Detail Shipped in 20 days after payment.
The design and manufacture of NL chain hoist conforms to the FEM standard and DIN standard. It combines the 3D object modeling and the finite element analysis technique to further optimize the gear transmission, box structure and the dimension of every spare parts, in this way, every single component could achieve optimal value.NL chain hoist adopts Germany technology and all key components are imported withoriginal packaging,such as energy efficient motors, safety brake. load protection cluth and highstrength wear resisting chain. The excellent quality makes it match the similar advanced European products.Regarding quality and performance.

Box:
The die- casting aluminium box designed through finite element analysis is a modern example of super performance and amazing appearance. feathering with compact structure. light deadweight and wonderful heat dispersion

Chain wheel:
Plug-in connection facilitates the replacement of the whole chain wheel, the Non-centre of gravity design makes the product more and reliable and the durable material extends the servicing life.

Gear case:
The sophisticated gear grinding craft and self-lubricating no noise design for hard tooth surface makes the motion more stable and extends the serving life of gears.

Friction clutch:
the setup and adjustment could be easily achieved with the outside adjustable revolving buttons, which not only ensure the safety, but also could act as overload protection.

Motor:
German brand. class F insulation and grade IP55 protection level. It adopts the enclosed DC Disk electromagnetic brake. which can handle brakes more than 1 million times.Even during the long time working in the high temperature. its performance could also be guaranteed.

Air plug:
Counduit entries are all standard alumimum alloy plug-ins, plug and play type. which do not need any other wires.

Limit swift:
The inside integrate upper and low limit devices could control the upper and low lifting height effectively, which results in less braking times, long serving lift and the formation of double safety mechanism with friction clutch.

Chain:
Top end chain with high performance. German brand. The surface of chain has been through the special quality hardening treatment and owns high tolerance to the hostile working environment such as overloading, rain, seawater and chemicals.

Hook group:
High- quality German DIN15401 hook griup with safety catch sets, compact and rotating in all direction, ensures the safety operation.

Capacity (t)

Lifting Speed

Motor Rating

Lifting Height

Fall

Work Duty

FEM/ISO

(m/min)

(kw)

(m)

0.25

2.0/8.0

0.09/0.36

3~8

1/1

1Am/M4

0.32

2.0/8.0

0.18/0.75

1/1

 3m/M6

0.5

2.0/8.0

0.18/0.75

1/1

1Am/M4

0.63

2.5/10

0.45/1.90

1/1

 2m/M5

1

2.5/10

0.45/1.90

1/1

1Bm/M3

1.5

1.25/5.0

0.75/3.0

1/1

1Am/M4

2

1.25/5.0

0.45/1.90

1/1

1Am/M4

2.5

1.25/5.0

1.2/4.8

1/1

1Am/M4

3

1.25/5.0

0.75/3.0

1/1

1Am/M4

1. light self-weight

2. convenient and safe operation

3. efficient and low noise

4. low maintenance cost

5. accurate lifting steady operation
