BMG type double girder semi-gantry crane

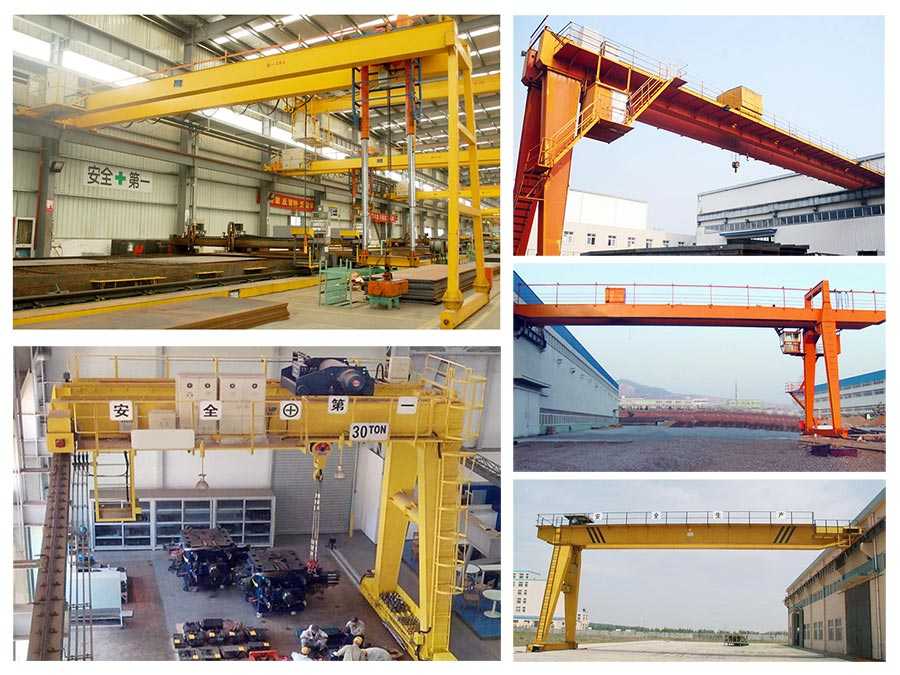

BMG double girder semi-gantry , crane, commonly used for factories, warehouses within or close to the factory outside, the no leg side is under factoryrailway, the right side located on the ground railway, used for transporting general goods, rated lifting capacity is 5~40t, level is A5, A6, crane driven is three-in-one driven, variable frequency control, simple structure, easy maintenance.

Main Parameter
  • span:18~35m
  • Lifting weight:5~50t
  • Lifting height:10~14m
  • Work class:A5
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
BMG double girder semi-gantry , crane, commonly used for factories, warehouses within or close to the factory outside, the no leg side is under factoryrailway, the right side located on the ground railway, used for transporting general goods, rated lifting capacity is 5~40t, level is A5, A6, crane driven is three-in-one driven, variable frequency control, simple structure, easy maintenance. Control methord is ground control or cab control, driver's cab on the leg side.


Cap.

Main

t

5

10

16

20

32

50

Aux.

-

-

3.2

5

5

10

Span

m

18m,22m,26m,30m,35m

Lift height

10m,11m,13m,14m

Work duty

A5

Max.wheel load

KN

160~

233

340~

222

298~

383

340~

432

457~

395

350~

378

Total power

KW

31.8

39.5

71.3

76.8

108

145

Recommended rail

P43

P43

P43

P43

QU80

QU80

Power supply

380~415V 50HZ 3PH

Beautiful and durable appearance

Perfect performance

Low cost and easy maintenance

High adaptability
