U type double girder gantry crane

U-shape double girder gantry crane with hook is suitable for open storage, railway operations for general handling and lifting handling work. U-shape gantry crane's design is increased car gauges,

  • U type double girder gantry crane
Main Parameter
  • span:18~35m
  • Lifting weight:5~50t
  • Lifting height:10~12m
  • Work class:A5
Nucleon(Xinxiang)Crane Co.,Ltd,
E-mail：sale@nucleoncranes.cn
Tel：+86-373-3075268
  • ● Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • ● Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • ● Delivery Detail Shipped in 20 days after payment.

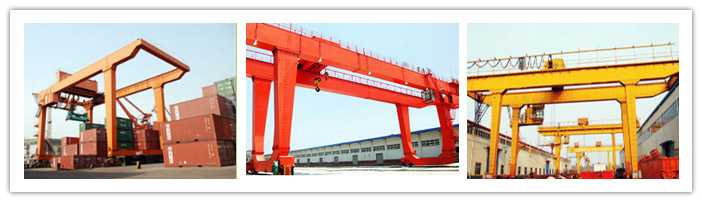

U-shape double girder gantry crane with hook is suitable for open storage, railway operations for general handling and lifting handling work. U-shape gantry crane's design is increased car gauges, so the leg room is larger, suitable for bulky goods handling work. Such as containers and so on. U-shape gantry crane structure, compared with the A-type door, eliminating the saddle, in the case of lifting height, the height of the machine is reduced.

It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on. The strong legs shape is like a English Letter ”U”, this design is very benefit when the container pass by thought the legs.

The control mode could be ground control, remote control, cabin control or both.


Capacity (ton)

5

10

16/3.2

20/5

32/5

50/10

Span (m)

18, 22,   24, 26, 30,   35

Lifting height (m)

10, 11, 12

Working class

A5

Control way

Cabin control

Power source

380V 50HZ 3phase (Could supply it as yours)

Trolley lifting mechanism

Lifting speed

(m/min)

Main hook

11.3

8.5

7.9

7.2

7.5

5.9

Auxiliary hook

-

-

14.6

15.4

15.4

10.4

Trolley traveling mechanism

Traveling speed (m/min)

37.3

35.6

36.6

36.6

37

36

Crane traveling mechanism

Traveling speed (m/min)

37.3

39.7

37.3

39.7

39.4

38.5

Motor power(KW)

40.8-51.8

41.5-52.8

80-77

84-81

99.3-117.3

126.5

Steel track recommended

43kg/m

43kg/m or QU70

Beautiful and durable appearance

Perfect performance

Low cost and easy maintenance

High adaptability
