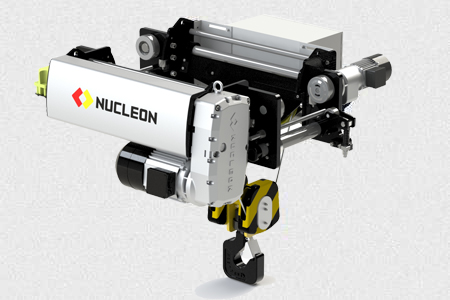

European standard ND Wire Rope Electric Hoist, ND type wire rope electric hoist with reference to the European FEM standards, it has advanced concept, beautiful appearance and imported drive unit from Germany. It is characterized by compact and reasonable structure. simple and convenient operation, safe and efficient operation, accords with modern low noise. energy saving and environmental protection requirements. This series of electric hoist has 13 patents technology and frequency conversion speed control design, which can achieve precise positioning, equipped with similar "black box" in aircraft to realize intelligent safety monitoring recorder. The overall of the crane is adopted by maintenance free design, less wearing parts, convenient maintenance. the overall technical level of this product has reached the advanced level of similar products at home and abroad. Based on the installation forms, the ND type electric hoist can be divided into low building height monorail trolley type (used for monorail electric single girder overhead crane),

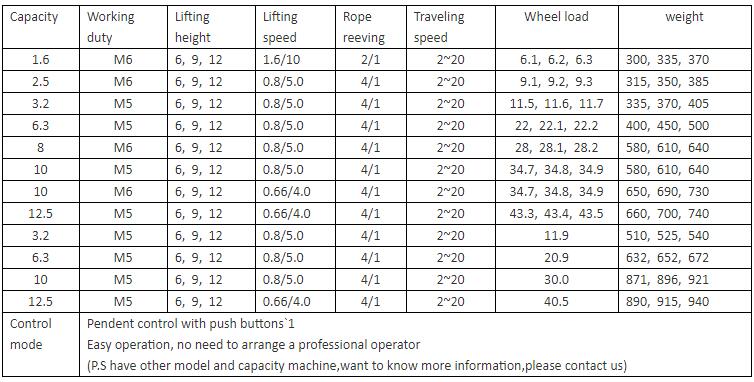

Double tail trolley type(MDS type. used for double girder overhead crane) and fixed type. The standard lifting weight of monorail trolley type electric hoist is 1 ~ 12.5t, the standard lifting height is 6m, 9m and12m. The standard lifting weight of the double trail trolley type and fixed type is 3.2～80t, with the weight of the hook from 10/3.2 to 80/20t , its standard lifting height can up to 18m.
The travelling speed is 2～20m/min with non-grade variable speed. standard lifting speed for 5/0.8m/min, also it can use of variable frequency speed control. The lifting mechanism is electric hoist, is has brake smoothly, small lifting swing, accurate positioning, the operation performance is greatly improved. The basic working duty design of electric hoist is M5.
1. long service life. rated according to FEM classification
2. many unique features to ensure safe. reliable and economical operation
3. good value for money.
4. for replacing used. end-of-life equipment.
