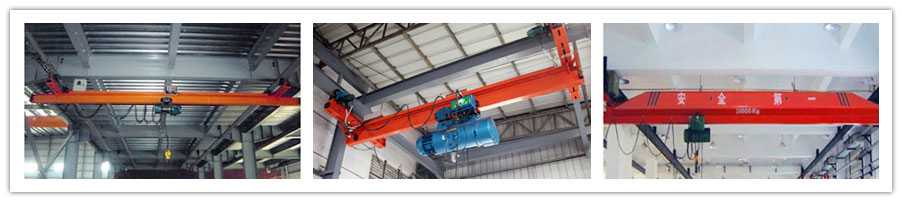

LB type explosion-proof electric single girder overhead crane

LB-type explosion-proof electric single girder crane with a reasonable structure, beautiful appearance, explosion-proof performance characteristics, the whole machine used with HB-electric hoist, it is a small light lifting.

Main Parameter
  • Lifting weight:1~20t
  • Work class:A3
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

Introduction

LB-type explosion-proof electric single girder crane with a reasonable structure, beautiful appearance, explosion-proof performance characteristics, the whole machine used with HB-electric hoist, it is a small light lifting. the rated weight is 1T-20T, span is 7.5-28.5M,working level A3, generally depending on the explosion-proof requirements are divided into the gas explosion-proof BT4,CT4 and coal safety explosion-proof type.

Applications

Iron and steel metallurgy, electricity, water, aerospace, shipbuilding, automobiles, coal, petrochemicals


Capacity(t)

1~20

Explosion Proof Grade

ExdIIBT4/ExdIICT 4

Working System

A3

Power Source

3-Phase AC 380V 50HZ

Crane Traveling mechanism

Traveling speed

20m/min

Power

08kw*2  1.5kw*2  2.2kw*2

Wheel Diameter

Φ270, Φ400

Steel track

P24, P38, P43

Soft start motor make the traveling smoothly

Electrical adapt as SIMENS or SCHNEIDER

Push button of control the lift can reach 200000 times

Current overload protect device

Voltage lost protect device
