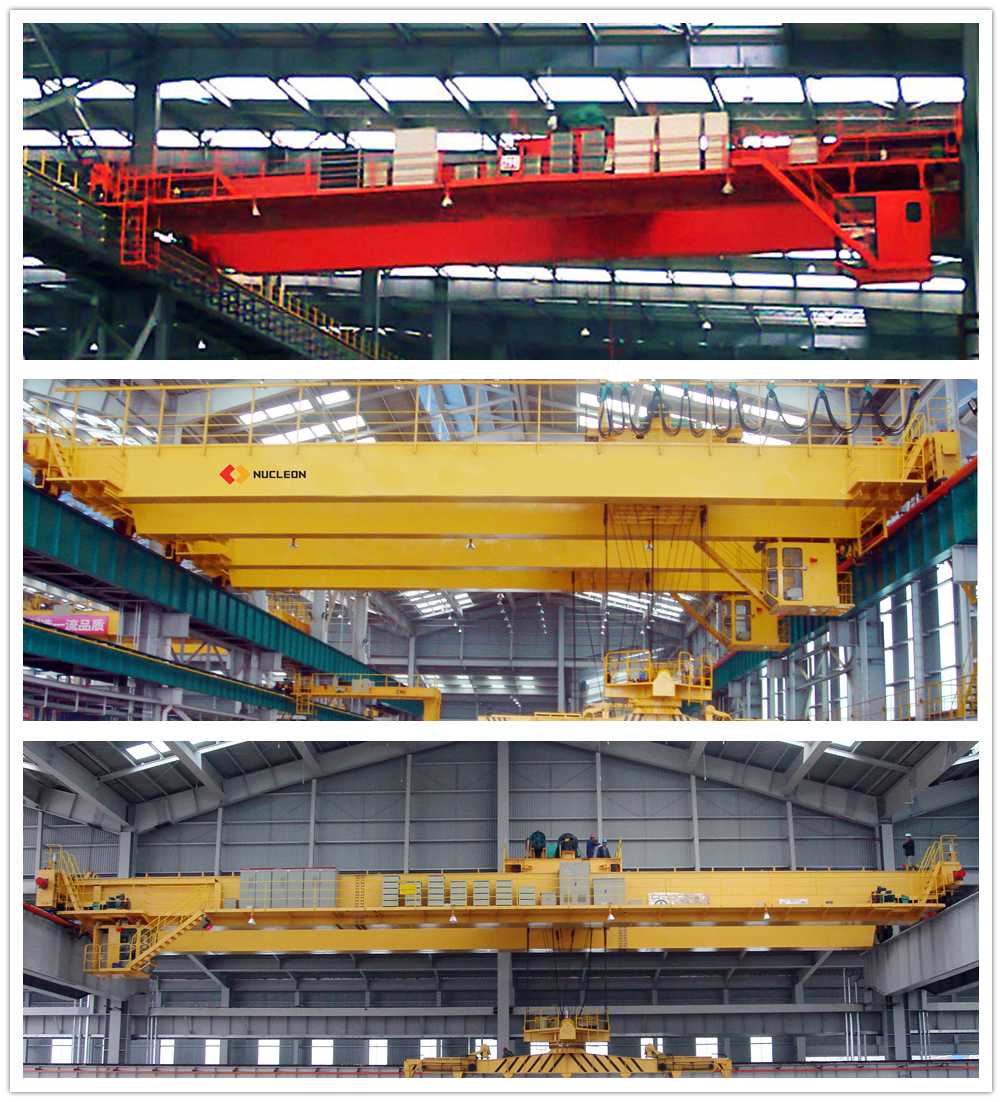

QC Electromagnetic Double Girder Overhead Crane

QC model electromagnetic double girder crane is very convenient for application in loading, unloading, and moving iron or steel blocks, cylinders and so on.

Main Parameter
  • Lifting weight:5~32t
  • span:10.5~31.5m
  • Lifting height:12~18m
  • Work class:A6~A7
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.
It consists of bridge, crane traveling mechanism, trolley, electric equipment and electromagnetic chuck. Both traveling mechanism and trolley motors are special motors for canes, which have large starting torque and loading capacity.Magnetic is retentive 10 minutes after power shut. The shape of electromagnet can be designed according to adsorptive goods.


1.Lifting weight:5t,10t,16t, 16/3.2t,32/5t,

2.Working class:A6-A7

3.Span:10.5m-31.5m

4.Lifting height:12-18m

5.Control model: cabin control, remote control, pendent control
