QZ Grab Overhead Crane

QZ overhead crane is mainly composed of box-shaped bridge, grab crab, trolley travelling mechanism, cab and electric control system. It is used various model grab bucket as a lifting mechanism, which is designed to working for grab all kinds of loose accumulative materials.

Main Parameter

Lifting weight:5~20t
span:10.5~31.5m
Lifting height:20~26m
Work class:A6

Nucleon(Xinxiang)Crane Co.,Ltd,

E-mail：sale@nucleoncranes.cn

Tel：+86-373-3075268

Get The Price

● Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
● Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
● Delivery Detail Shipped in 20 days after payment.

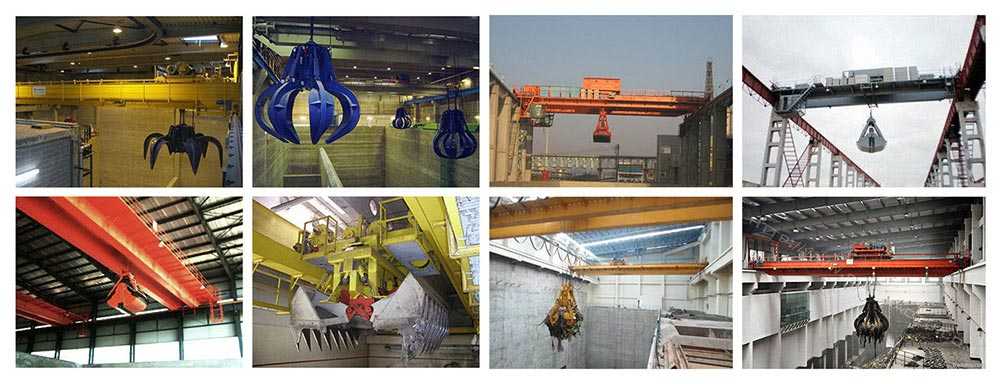

1.QZ grab crane is widely used in loading goods in port, factory, workshop ade power plant.

2.It mainly consists of bridge, crane travelling, trolley, grab, driver's cabin and electrical equipment. Adopt double beam and double track, hoist trolley structure.Componment supplier from SCHNEDER and SIMENS.

3.The group classification of the crane is A6.

4.The lifting capacity includes the weight of the grab.

5.Operational method:cabin and remote control .The direction of platform door to the driver's cap is :side, end and top.

6.The open direction of the grab is :paralleling with the beam and plumbing with the beam, this design is the plumbing type.

7.According to different work duty and materials, The grab could be double or four wire rope, hydraulic type or mechanical or electric type.

Lifting weight(t)		5		10		16			20
Span(m)		10.5~31.5
Max Lifting height(m)		20		18	22				26
Working class		A6
Speed (m/min)	lift	40.1		40.7		41.8			48.6
	Traveling of crab	44.6		45.6		43.2
	Traveling of trolley	93.7/86.4		76/89		89/87.3			87.3
Motor (type/kw)	Hoisting closing	YZR225M-8/22*2		YZR280S-10/37*2		YZR315M-10/75*2			YZR355M-10/90*2
	Traveling of crab	YZR132M2-6/3.7		YZR160M1-6/5.5		YZR160M2-6/7.5
	Traveling of trolley	YZR160 M1-6/5.5*2	YZR160 M2-6/7.5*2	YZR160 M2-6/7.5*2	YZR160 L-6/11*2	YZR160 L-6/11*2		YZR180 L-8/11*2	YZR180 L-8/11*2	YZR200 L-8/15*2
Steel track recommended		43kg/m					QU70
Power source		3P A.C 50Hz 380V
