Nucleon Double Girder Overhead Crane Electric Hoist Trolley

Nucleon Double Girder Overhead Crane Electric Hoist Trolley, the limiting size is the lowest between the top of crab and the track of trolley, that is to say, it reduces 20%-30% compared with traditional products, which can reduce the capital of workshop 20% efficiently.

Main Parameter
  • Lift weight:5~50t
  • Lifting height:30.8-45m
  • Working Class:M5/M6
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

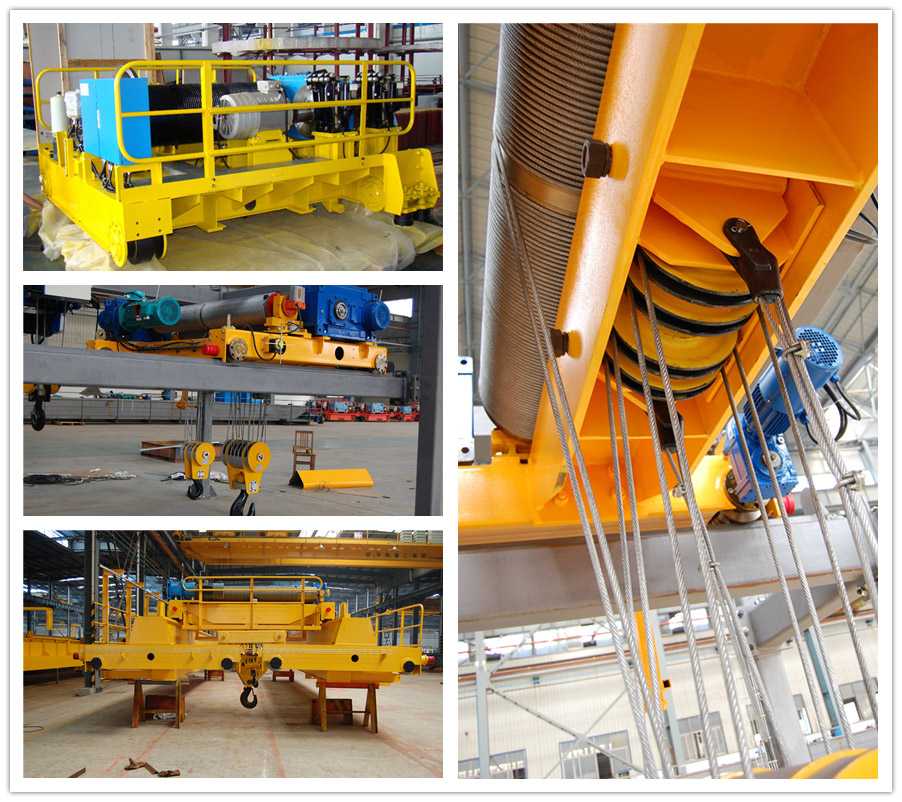

Nucleon double girder overhead crane electric hoist trolley is widely used especially when the electric hoist as a light duty lifting mechanism can't meet the lifting demands, It is composed of electric hoist, wheel and trolley frame. through the rails installed on the crane beams, the trolley can realize traveling from one side to another.

The limiting size is the lowest between the top of crab and the track of trolley, that is to say, it reduces 20%-30% compared with traditional products, which can reduce the capital of workshop 20% efficiently.
Choosing principle: according to the working system and using filed. which system you will choose. filed should go first. Calculation the times per hour of starting and pulling-on recycle. we should mark the practical time per day and continuous work time. Also we should take it consideration about the limiting size. ambient temperature. speed. time. intermission or continuous, the times of starting and pulling-on recycle etc. The speed of ground control should adopts A3 slow-speed. the above mentioned is just for reference. Reasonable selection, design and match can increase the working efficiency greatly.

Nucleon Double Girder Overhead Crane Electric Hoist Trolley

Lift weight(Q)

Work duty(M)

Track gauge(mm)

Wheel track(mm)

Lift speed(m/min)

Travel speed(m/min)

Lift height(m)

5t

M5

1400

1100

11.3

38.3

16

M6

15.4

10t

M5

2000

1400

7.71

32/45

M6

13.3

10/3.2t

M5

2050

7.71/19.7

16/18

M6

13.3/19.7

16/3.2t

M5

2400

7.95/19.7

32/44.8

M6

13/19.7

20/5t

M5

7.2/19.5

12/14

M6

12.3/19.5

32/5t

M5

2500

2800

7.5/19.5

42.8

16/18

M6

9.5/19.5

50/10t

M5

5.9/19.5

44.5

12/16

M6

7.8/13.2

75/20t

M6

4400

5.7/9

34.3

20/22

80/20t

M6

4600

3000

7.1/16.7

30.5

24/26

100/20t

M6

4400

2900

4.6/9

36.5

20/22

160/32t

M6

4600

3000

5.7/9

38

20/22

200/50t

M6

4800

3000

5.7/9

38

20/22

1. compact structure
2. convenient and safe operation
3. efficient and low noise
4. energy conservation
5. accurate lifting steady operation
