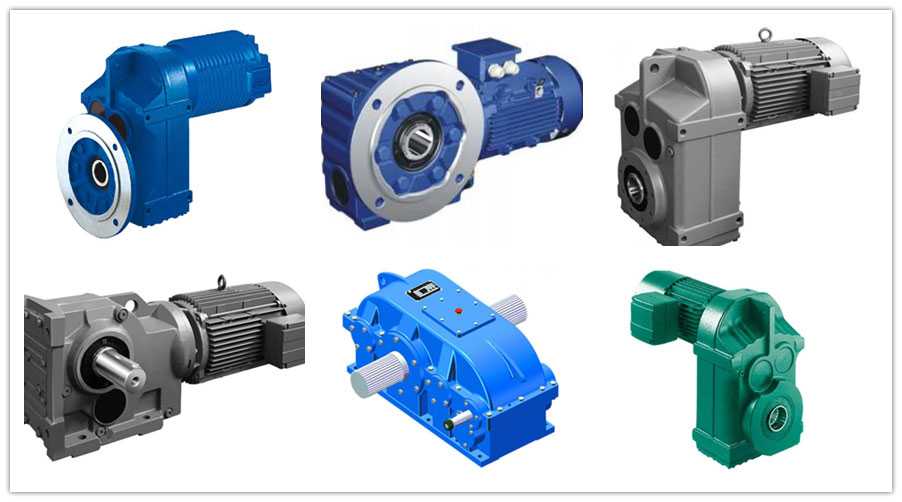

Geared Motors

F series parallel shaft gear speed reducer have compacted structure, include two and three stages transmission combination.

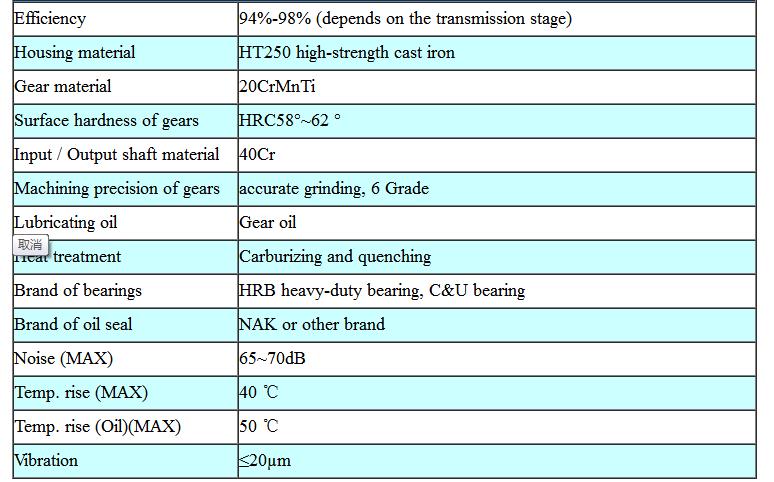

Main Parameter
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

It can be used with follow compounds to meet different transmission requirement and has wide and range of application.The volume is small, the weight is light, the transmission torque is big, the starting steady, the low loss, the way of installment are diverse, input, output nimble and so on. Thus the gear units are quite suitable for the situation which the  space is limit. Combination with each kind of reducer the units can satisfied the dissimilar condition.


1.Power: 0.12~200KW.

2.Torque:100~18000N•m.

3.Transmission ratio: 4~280.

4.By motor direct connection and shaft input, feet,flange and small flange etc., mounting form.

5.Output speed: 0.11~373r/min
