Nucleon 1M3 to 30M3 Hydraulic Wireless ratio Controlled Clamshell Grab Bucket

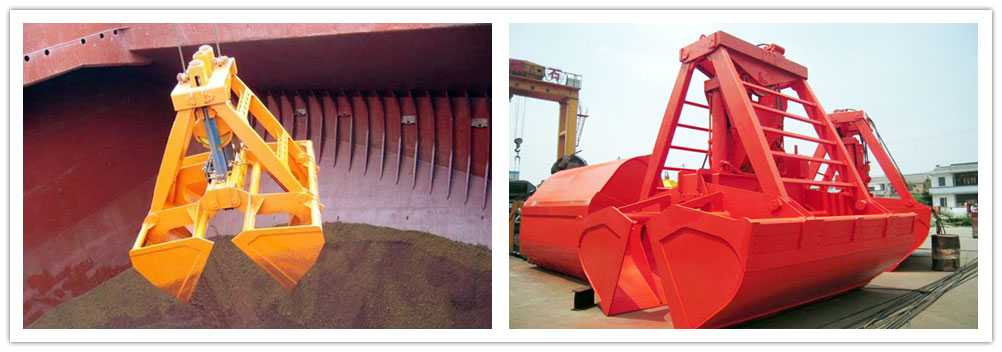

Grab is a tool which can capture sediment and a variety of bulk cargo and can open and close. It is suitable for port, hydropower plant, metallurgical , construction, and storage yard application.

Main Parameter
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

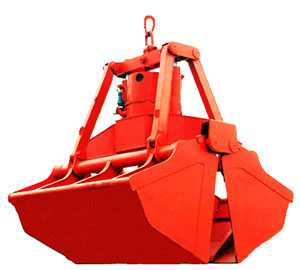

Grab is a tool which can capture sediment and a variety of bulk cargo and can open and close. It is a hook which depend on mainly left and right combination grab or multiple jaw platet to open and close and then capture and unload bulk material . According to the motor methord,the grab can be divided into hydraulic grab and mechanical grab. Our company manufacture mainly grab 0.25~30m3,0.5 tons ~70 tons of four rope grab, single rope grab, electric grab, hydraulic grab, motor grab, more flap grab, wood grab, cut type grab, stainless steelgrab, and anti-leak grab, more than 20 multiple varieties more than 300 more species model, widely application to mine, terminal, and metallurgical, building materials, power, traffic, paper, and chemical, and coal, environmental, oil, steel industry, the grab designed and manufactured by our company with new structure , performance stable, grab share high, and Long life and other advantages.


Model

Volume

(m3)

Self weight

(t)

Using crane

(t)

Motor Power

(kw)

Operating Pressure

(Bar)

Close time

(s)

DYZ3

0.6

1.7

3.2

11

180

11

DYZ5

0.8

2.0

5

15

180

13

DYZ10

5

4.3

10

22

200

16

DYZ16

8

5.6

16

30

200

16

DYZ20

12

8

20

37

200

17

DYZ25

17

9

25

45

200

26

DYZ30

20

11

30

45

200

28

1. International advanced electro-hydraulic servo sensitivity control technology

2. Hydraulic system adopts isopiestic multiple synchronizing circuit

3. Bucket petals are made of high abrasion proof alloy steel

4. Hydro-cylinder with imported sealing component
