Winch

This winch series is gears recucer driving. Mainly used for hoisting pull and unloading tow the weight drop. For example all kinds of large and middle concrete constructure of steel, installation and disassembly of mechanical equipment. It is suitable for construction and installation engineering of construction installation enterprise mining area factory and etc.

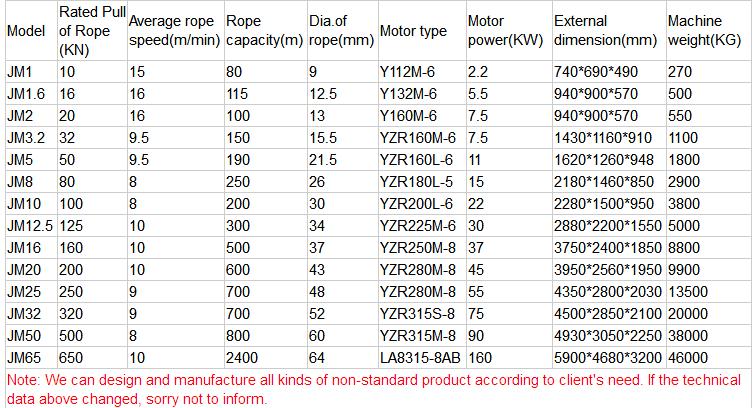

Main Parameter
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

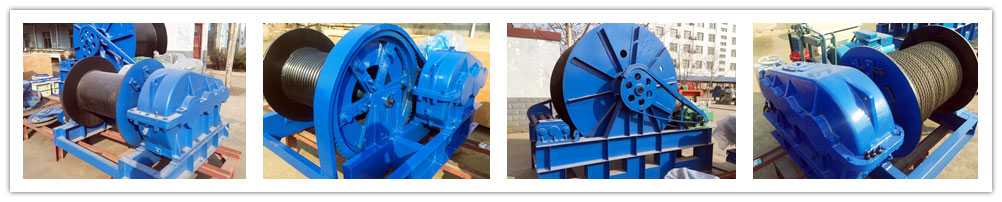

JM Series Electronic Control Slow Speed Crane Winch Brief introduction

1. winch drive with human power or mechanical power driving a reel.

2. winch can vertically lift or horizontally and obliquely draw heavy weights.

3. An electric winch consists of a motor, the coupling, the brake, the gear box, and the reel, altogether installed on the machine frame.

JM Series Electronic Control Slow Speed Crane Winch   Overall features

generality, compact structure, small volume, light dead weight, heavy lifting capacity and convenient movement.

JM Series Electronic Control Slow Speed Crane Winch  Work principle

1. The winch transforms electric energy into mechanical energy through the motor1, which is rotor of the motor moves, outputs

2. then through the brake 2, and the reducer 3 reduces speed to rotate the reel 4.

3. The reel winds the wire rope and passes through pulley block to make the hook lift the load,

4. complete load and unload of heavy weights.
