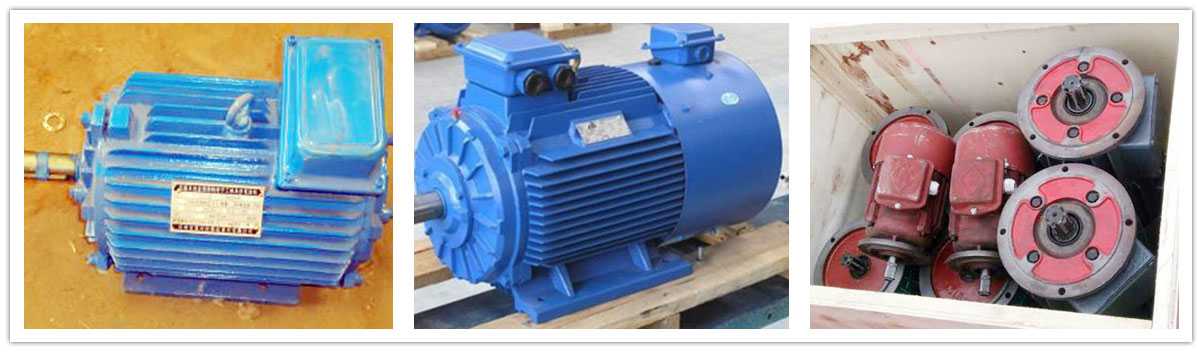

Explosion Proof Ac Electric Motor

Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above

Main Parameter
Nucleon(Xinxiang)Crane Co.,Ltd,
  • Certification Nucleon Crane has been audited by many international authority such as CE/ISO/SGS/BV/GOST/RTN/TUV and so on.
  • Packaging Details Our marine crane normal export package:Wooden pallet,Rack wooden,20' and 40' container,Nude or According to your demands.
  • Delivery Detail Shipped in 20 days after payment.

Generally introduction

Explosion proof mark: EXD1 EXDIIAT4 EXDIIBT4  EXDIICT4

Certificate: IECEX ATEX(for Europe market)

Ambient Temperature: -15°C~40°C

Altitude: not exceed 1000 Meter

Rated Voltage: 380V or any voltage between 220-760V

Rated Frequency: 50Hz/60Hz

Protection Class: IP55

Insulation Class: F/H

Temprature rise: B/F

Cooling Method: IC0141

Working Duty: S1(Continuous)

Humidity: Lower than 90%

Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above


Power

 0.12KW-90KW

Frame

 H63 to 280;

Shell

 cast aluminum/iron;

Pole

 2/4/6/8 poles;

Mounting arrangement

 B3/B5/B14/B35/B34 or other;

Voltage

 220V, 380V, 400V, 415V, 440V or on request (50Hz or 60Hz);

Protection class

 IP54 / IP55 /IP65;

Duty/Rating

 S1 (Continuous);

Cooling method

 IC416 (SELF-FAN cooling);

Insulation class

 F;

Standard

 (IEC) EN60034-1 & EN1060204-1.

1) 100% output with 100% copper winding;

2) Different size of flange to fit for different device, customized flange is workable.

3) All materials are brand-NEW.
