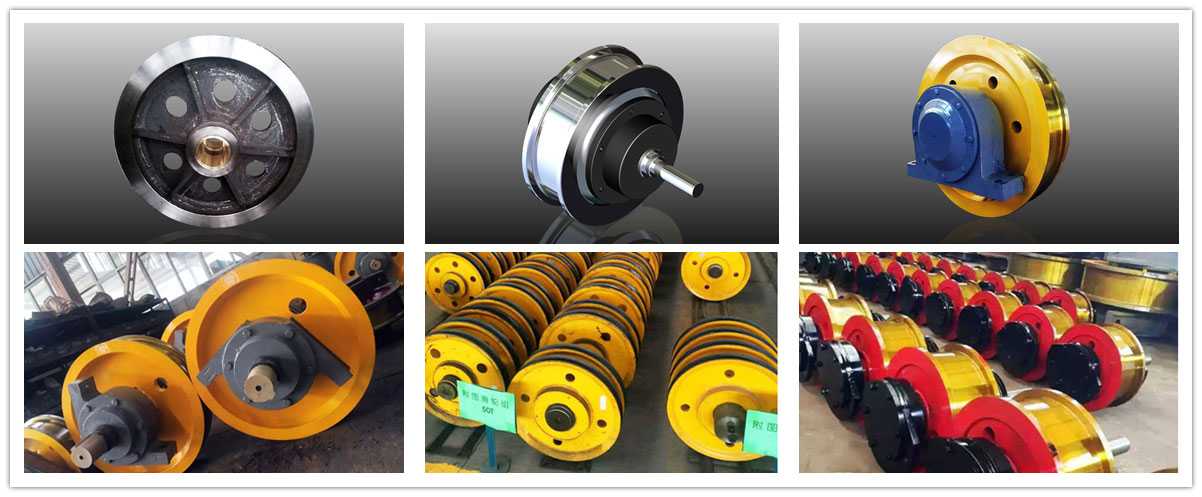

Nucleon wheel range are used in QD5~100t double girder bridge crane, gantry crane, included the standard Ф250—Ф900.
The wheel is used for supporting the overhead crane and running on the rail. The main abrasive form of wheel is abrasion, hardening layer crush and pitting. In order to improve abrasive resistance and life of wheel surface, wheel tread should be processed by thermal treatment. The surface hardness is 300-350, and the depth of quenching is more than 20mm. The nucleon wheel range use high quanlity bearing in accordance with industry standards to ensure every product qualified.
|
Items |
Description |
|
Forging part |
Forged Crane Wheel |
|
Material |
carbon steel, spring steel, alloy steel, such as Chinese standard #60,65Mn,42CrMo |
|
Dimension |
according to your drawings |
|
Application |
heavy duty industry, port crane, gantry crane |
|
Standard |
ASTM, ASME, DIN, JIS, ISO, BS, API, EN |
|
Inspection |
chemical composition, ultrasonic test, mechanical property, dimension inspection |
|
QC Doc. |
chemical composition repor, mechanical properties report, ultrasonic test report, heat treatment report, dimensions inspection report |
|
Process |
ingot---forging---heat treatment--- machining ---packing |
|
Heat treatment |
Normalized / Annealed / Quenched / Tempered |
